Pump and Fan
iPA-2U-WN400 + A4001
Application Examples :
Electro-hydraulic
Off-highway
Warehouse automation
Peak Power
47 kw
Cont. Power
32 kw
Max Speed
4,000 rpm
Voltage
420 VDC
iPA-4U-WN400 + A4001
Application Examples :
Electro-hydraulic
Off-highway
Warehouse automation
Peak Power
48 kw
Cont. Power
33 kw
Max Speed
4,000 rpm
Voltage
420 VDC
Product range
Case Studies
We create and manufacture Motor Solutions
Revolutionising Aerial work platform
83dB
Integrated
design
Client
Quattro Plant Hire
Product
iPA

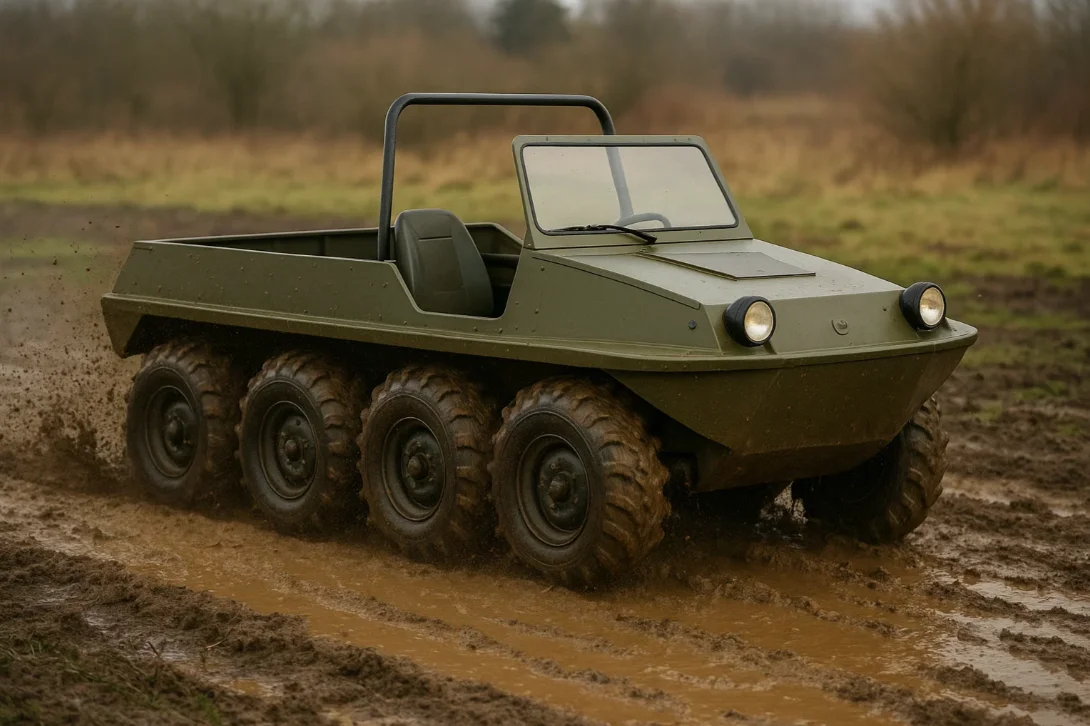

Multi wheeled amphibious vehicle
Dual
Motor
2 days
battery
Client
North American OEM
Product
sPA
High Power Fan for military application
60
kW
High
Axial load
Client
North American OEM
Product
iFA
WHAT WE DO
We create and manufacture motor solutions
Technical Documentation
We work closely with Pump and Fans companies that are seeking precision and a collaborative approach.
| Motor Frame | Motor Length | Winding Number | AC / DC | Voltage (V) | Peak Torque @1000rpm (Nm) | Peak Torque @ Max Speed (Nm) | Cont. Torque @1000rpm (Nm) | Cont. Torque @ Max Speed (Nm) | Max Speed (rpm) | Peak Power @1000rpm (kW) | Peak Power @ Max Speed (kW) | Cont. Power @1000rpm (kW) | Cont. Power @ Max Speed (kW) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| sPU | 2U | WN200 | DC Battery | 48 | 91 | 23 | 13 | 8 | 4000 | 2.41 | 9.63 | 1.36 | 3.35 | |
| sPU | 4U | WN100 | DC Battery | 48 | 109 | 44 | 23 | 12 | 4000 | 4.61 | 18.43 | 2.41 | 5.03 | |
| iPU | 1U | WN200 | DC Battery | 48 | 107 | 26 | 33 | 16 | 4000 | 2.72 | 10.89 | 3.46 | 6.70 | |
| iPU | 2U | WN100 | DC Battery | 48 | 143 | 55 | 71 | 36 | 4000 | 5.76 | 23.04 | 7.44 | 15.08 | |
| iPU | 4U | WN050 | DC Battery | 48 | 161 | 60 | 143 | 73 | 4000 | 6.28 | 25.13 | 14.98 | 30.58 | |
| iPU | 2U | WN200 | DC Battery | 400 | 158 | 157 | 73 | 70 | 4000 | 16.44 | 65.77 | 7.64 | 29.32 | |
| iPU | 4U | WN400 | DC Battery | 400 | 325 | 108 | 148 | 78 | 4000 | 11.31 | 45.24 | 15.50 | 32.67 | Download |
| iPU | 1U | - | AC Mains | 310 | 63 | 63 | 27.5 | 27.5 | 3000 | 6.60 | 19.79 | 2.88 | 8.64 | |
| iPU | 2U | - | AC Mains | 310 | 126 | 126 | 55 | 55 | 3000 | 13.20 | 39.59 | 5.76 | 17.28 | |
| iPU | 3U | - | AC Mains | 310 | 189 | 189 | 82.5 | 82.5 | 3000 | 19.79 | 59.38 | 8.64 | 25.92 | |
| iPU | 4U | - | AC Mains | 310 | 252 | 252 | 110 | 110 | 3000 | 26.39 | 79.17 | 11.52 | 34.56 | |
| sPU | 1U | - | AC Mains | 310 | 19.8 | 19.8 | 5.9 | 5.9 | 3000 | 2.07 | 6.22 | 0.62 | 1.85 | |
| sPU | 2U | - | AC Mains | 310 | 39.6 | 39.6 | 11.8 | 11.8 | 3000 | 4.15 | 12.44 | 1.24 | 3.71 | |
| sPU | 3U | - | AC Mains | 310 | 59.4 | 59.4 | 17.7 | 17.7 | 3000 | 6.22 | 18.66 | 1.85 | 5.56 | |
| sPU | 4U | - | AC Mains | 310 | 79.2 | 79.2 | 23.6 | 23.6 | 3000 | 8.29 | 24.88 | 2.47 | 7.41 |
