Marine

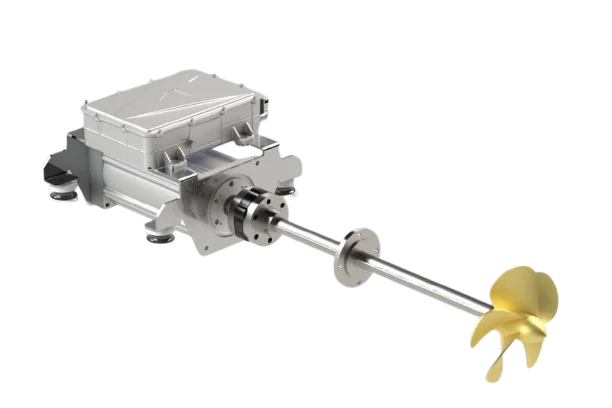

iMV-2U-WN400 + A4001
Application Examples :
Sail Drive
Powerboat
Race Application
Peak Power
47 kw
Continous Power
32 kw
Max Speed
4,000 rpm
Voltage
420 VDC
iMV-4U-WN400 + A4001
Application Examples :
Sail Drive
Powerboat
Race Application
Peak Power
48 kw
Continous Power
33 kw
Max Speed
4,000 rpm
Voltage
420 VDC
Product range
Find the right solutions
Theoretical Power
25.8 kW
Actual Power
49.3 kW or 66.1 hp
Shaft Speed
900.1 RPM
Case Studies
We create and manufacture Motor Solutions

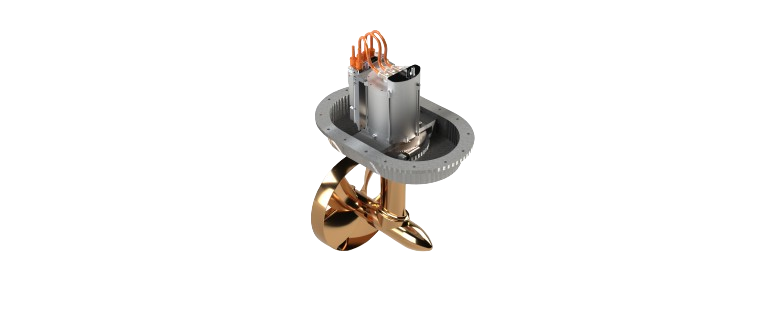

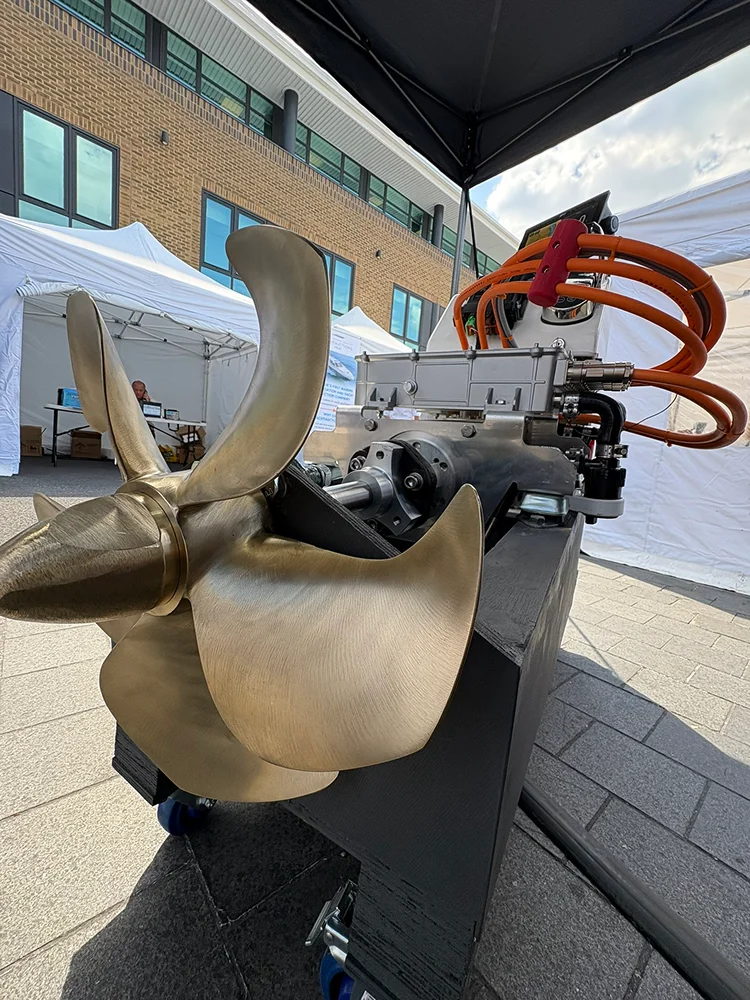

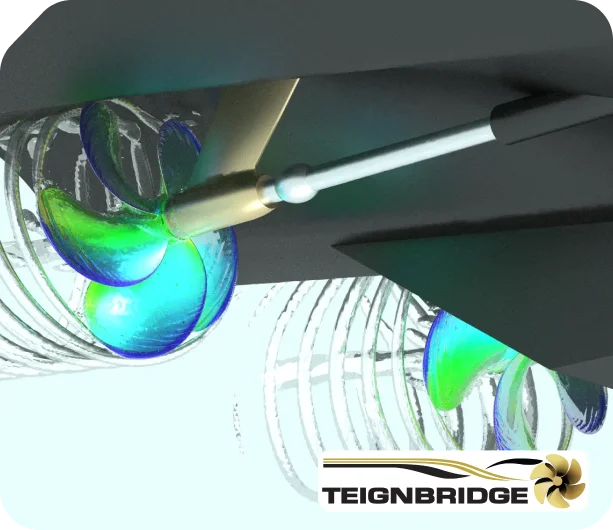

Novel propeller motor solution
Client
Teignbridge Propellers
Product
rMV

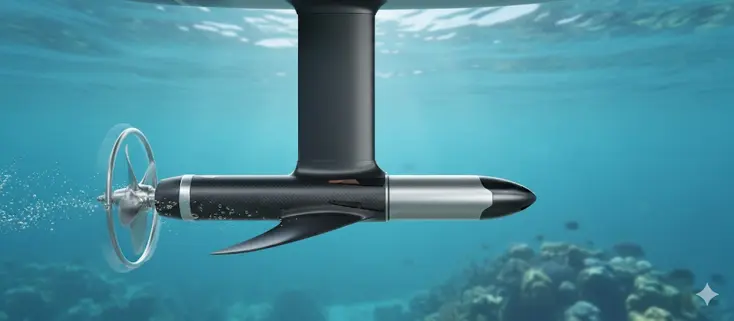

Foiling solution - Combined motor, drive and gearbox
Client
UK Marine OEM
Product
Custom

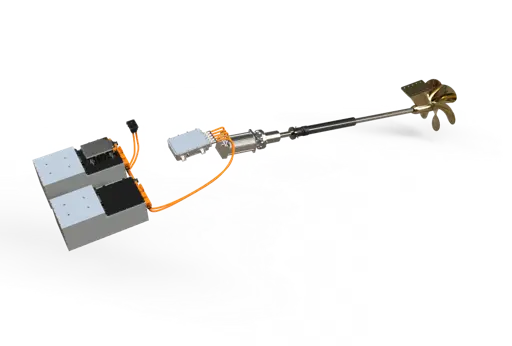

Integrated design
Client
UK Marine OEM
Product
iMV
WHAT WE DO
We create and manufacture motor solutions
Technical Documentation
We work closely with Pump and Fans companies that are seeking precision and a collaborative approach.
| Motor Frame | Motor Length | Winding Number | AC / DC | Voltage (V) | Peak Torque @1000rpm (Nm) | Peak Torque @ Max Speed (Nm) | Cont. Torque @1000rpm (Nm) | Cont. Torque @ Max Speed (Nm) | Max Speed (rpm) | Peak Power @1000rpm (kW) | Peak Power @ Max Speed (kW) | Cont. Power @1000rpm (kW) | Cont. Power @ Max Speed (kW) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| sPU | 2U | WN200 | DC Battery | 48 | 91 | 23 | 13 | 8 | 4000 | 2.41 | 9.63 | 1.36 | 3.35 | |
| sPU | 4U | WN100 | DC Battery | 48 | 109 | 44 | 23 | 12 | 4000 | 4.61 | 18.43 | 2.41 | 5.03 | |
| iPU | 1U | WN200 | DC Battery | 48 | 107 | 26 | 33 | 16 | 4000 | 2.72 | 10.89 | 3.46 | 6.70 | |
| iPU | 2U | WN100 | DC Battery | 48 | 143 | 55 | 71 | 36 | 4000 | 5.76 | 23.04 | 7.44 | 15.08 | |
| iPU | 4U | WN050 | DC Battery | 48 | 161 | 60 | 143 | 73 | 4000 | 6.28 | 25.13 | 14.98 | 30.58 | |
| iPU | 2U | WN200 | DC Battery | 400 | 158 | 157 | 73 | 70 | 4000 | 16.44 | 65.77 | 7.64 | 29.32 | |
| iPU | 4U | WN400 | DC Battery | 400 | 325 | 108 | 148 | 78 | 4000 | 11.31 | 45.24 | 15.50 | 32.67 | Download |
| iPU | 1U | - | AC Mains | 310 | 63 | 63 | 27.5 | 27.5 | 3000 | 6.60 | 19.79 | 2.88 | 8.64 | |
| iPU | 2U | - | AC Mains | 310 | 126 | 126 | 55 | 55 | 3000 | 13.20 | 39.59 | 5.76 | 17.28 | |
| iPU | 3U | - | AC Mains | 310 | 189 | 189 | 82.5 | 82.5 | 3000 | 19.79 | 59.38 | 8.64 | 25.92 | |
| iPU | 4U | - | AC Mains | 310 | 252 | 252 | 110 | 110 | 3000 | 26.39 | 79.17 | 11.52 | 34.56 | |
| sPU | 1U | - | AC Mains | 310 | 19.8 | 19.8 | 5.9 | 5.9 | 3000 | 2.07 | 6.22 | 0.62 | 1.85 | |
| sPU | 2U | - | AC Mains | 310 | 39.6 | 39.6 | 11.8 | 11.8 | 3000 | 4.15 | 12.44 | 1.24 | 3.71 | |
| sPU | 3U | - | AC Mains | 310 | 59.4 | 59.4 | 17.7 | 17.7 | 3000 | 6.22 | 18.66 | 1.85 | 5.56 | |
| sPU | 4U | - | AC Mains | 310 | 79.2 | 79.2 | 23.6 | 23.6 | 3000 | 8.29 | 24.88 | 2.47 | 7.41 |
